Copper Flexible Wires

Fine-stranded electrolytic copper conductors with PVC insulation, for building wiring, panels and equipment. Manufactured in India and supplied in retail and bulk packing.

1100 VVoltage grade
0.5 – 6 mm²Single-core sizes
Class 5Fine-stranded copper
IS 694 / IS 9968Manufacturing standards

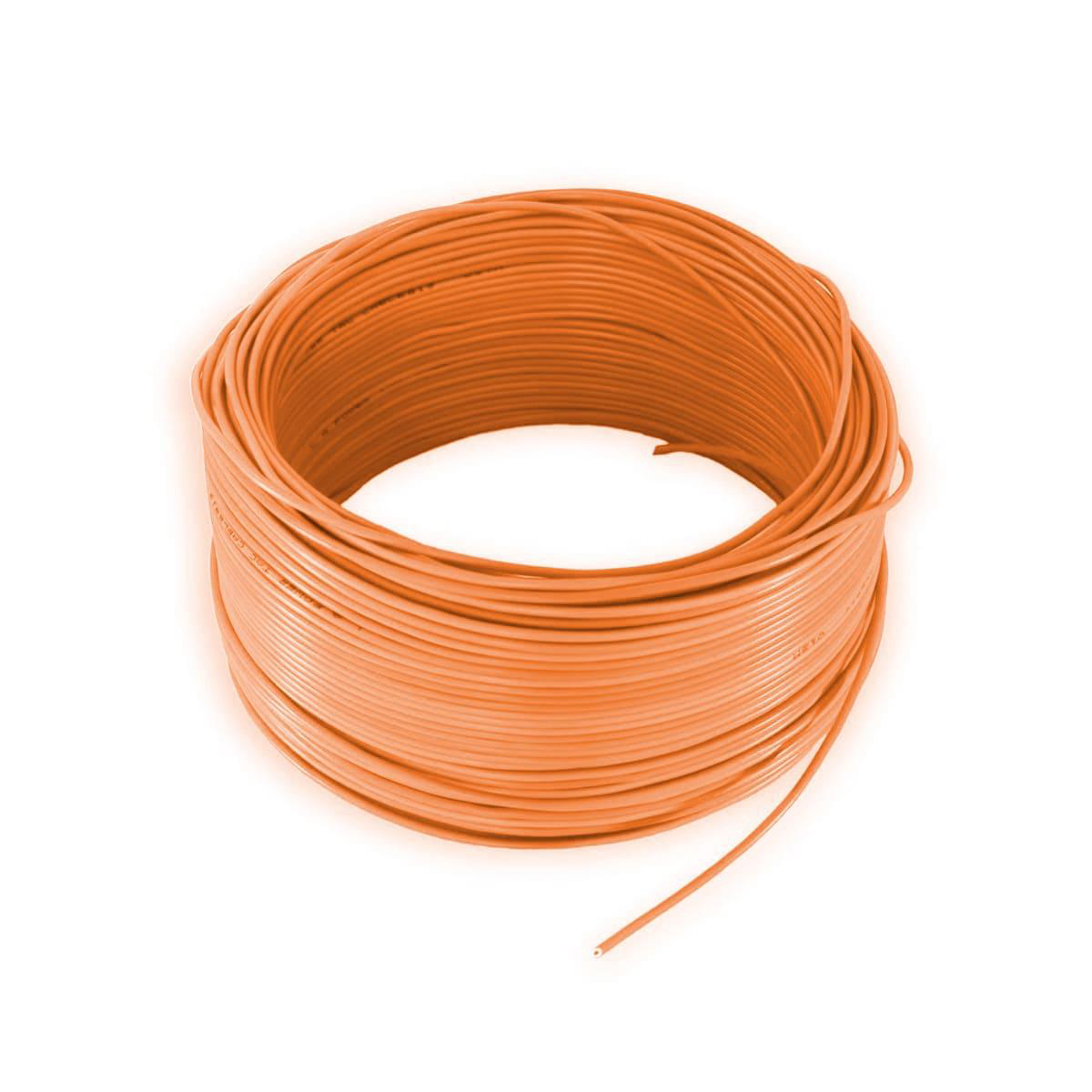

Coil of single-core copper flexible wire with orange PVC insulation

Copper Flexible Wire

Single-core wire drawn from 99.97% electrolytic copper and bunched into fine Class 5 strands, so it bends easily through conduits and tight loops without work-hardening. PVC insulation is available in FR and FRLS grades and a full colour range for phase identification.

  • Conductor Electrolytic copper, Class 5
  • Insulation PVC — FR / FRLS options
  • Sizes 0.5 – 6 mm²
  • Coil lengths 90 m and 180 m
  • Standard IS 694

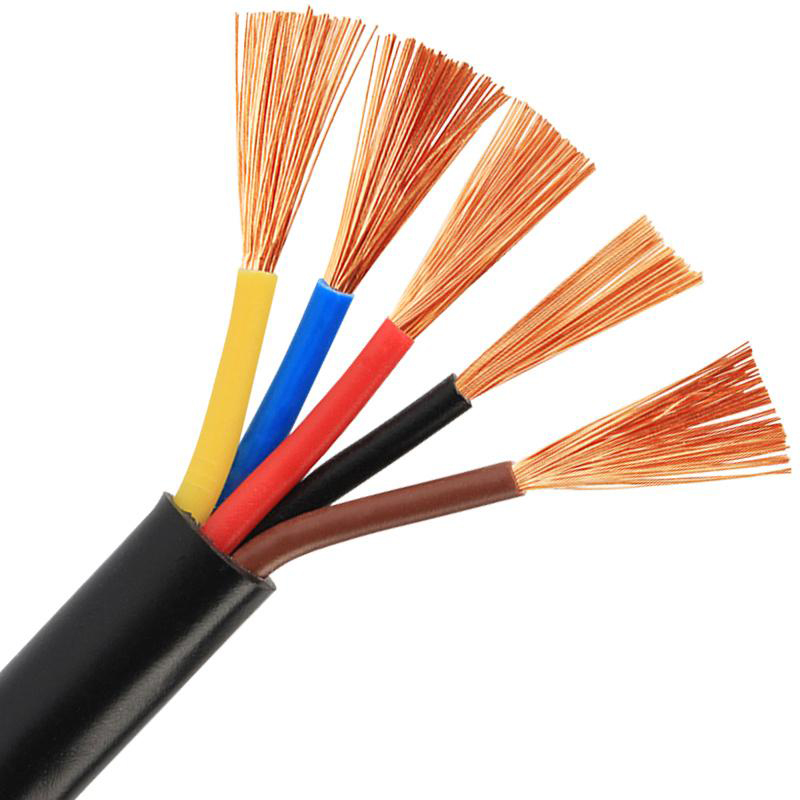

Multi-core flexible copper cable with five colour-coded fine-stranded cores under a black sheath

Multi-Core Flexible Copper Cable

Several insulated flexible cores laid up together under a common PVC sheath, keeping a full circuit in one run instead of separate wires. Colour-coded cores speed up termination, and the outer sheath adds abrasion and moisture protection for equipment and trailing use.

  • Conductor Electrolytic copper, Class 5
  • Cores 2, 3, 4 and 5 core
  • Insulation PVC, colour coded
  • Sheath PVC outer sheath
  • Standard IS 694 / IS 9968

Where they are used

Building wiring

Concealed conduit runs for lighting, sockets and submains.

Control panels

Internal wiring and terminations inside switchgear and boards.

Appliances and machinery

Motor leads, pumps and factory equipment connections.

Portable and trailing use

Extension assemblies and tools needing repeated flexing.

Full specifications in the catalogue

Sizes, current ratings, colour options and packing data for both ranges.

Download the catalogue
