Armoured & Unarmoured Power Cables

XLPE and PVC insulated power cables for underground, indoor and industrial distribution, manufactured in India and shipped to project sites worldwide.

1.1 kV – 33 kVVoltage grades
1.5 – 630 mm²Conductor sizes
Copper & aluminiumConductor options
IS 7098 / IS 1554IEC 60502 tested

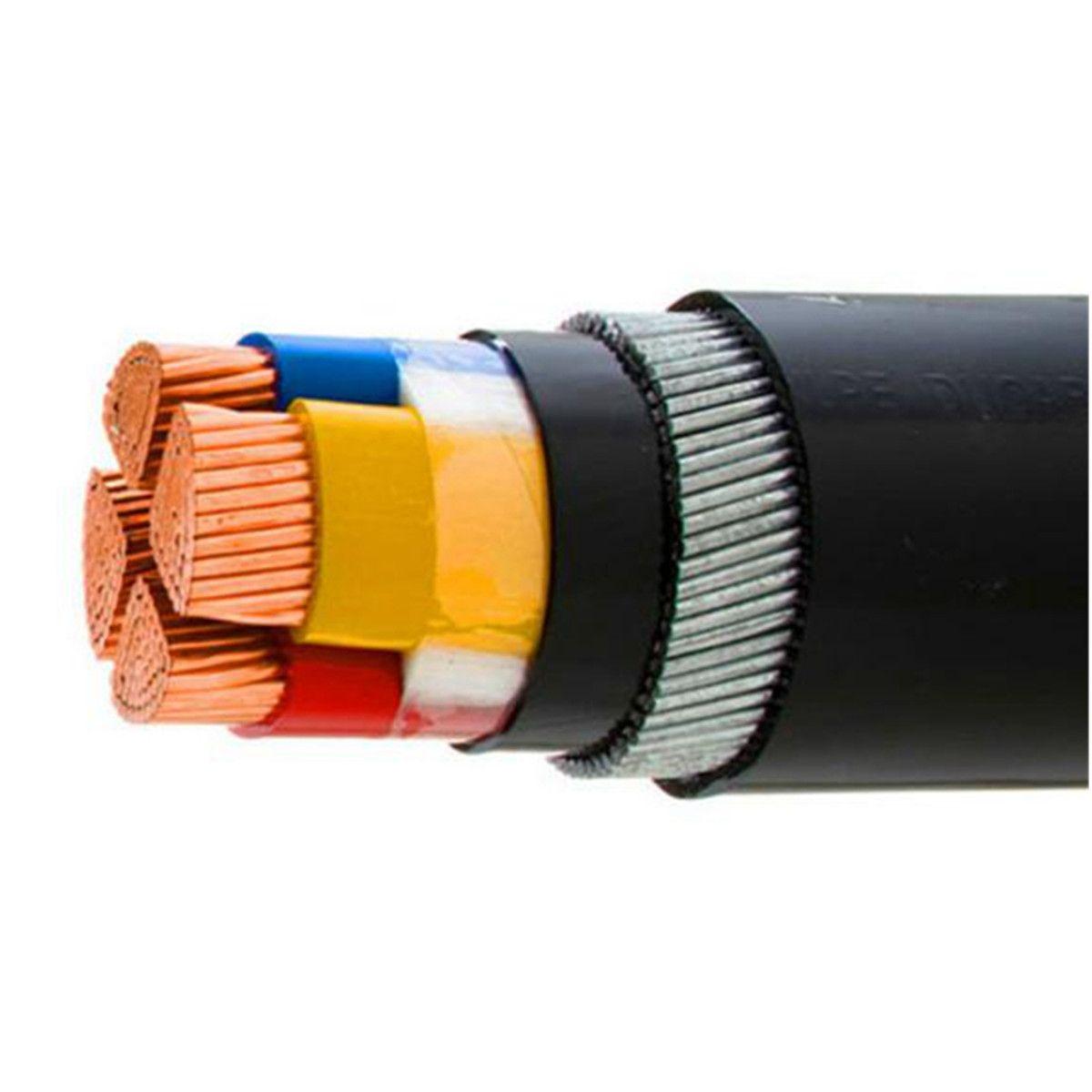

Armoured power cable showing copper conductors, coloured insulation and steel wire armour

Armoured Power Cable

A layer of galvanised steel wire or strip armour sits between the inner and outer sheath, protecting the cable against crushing, impact and rodents. Suited to direct burial, ducts and exposed outdoor runs where the cable takes mechanical load.

  • Conductor Copper or aluminium, stranded
  • Insulation XLPE or PVC
  • Armour Galvanised steel wire / strip
  • Cores 1, 2, 3, 3.5 and 4 core
  • Sheath PVC, ST-1 / ST-2 grade

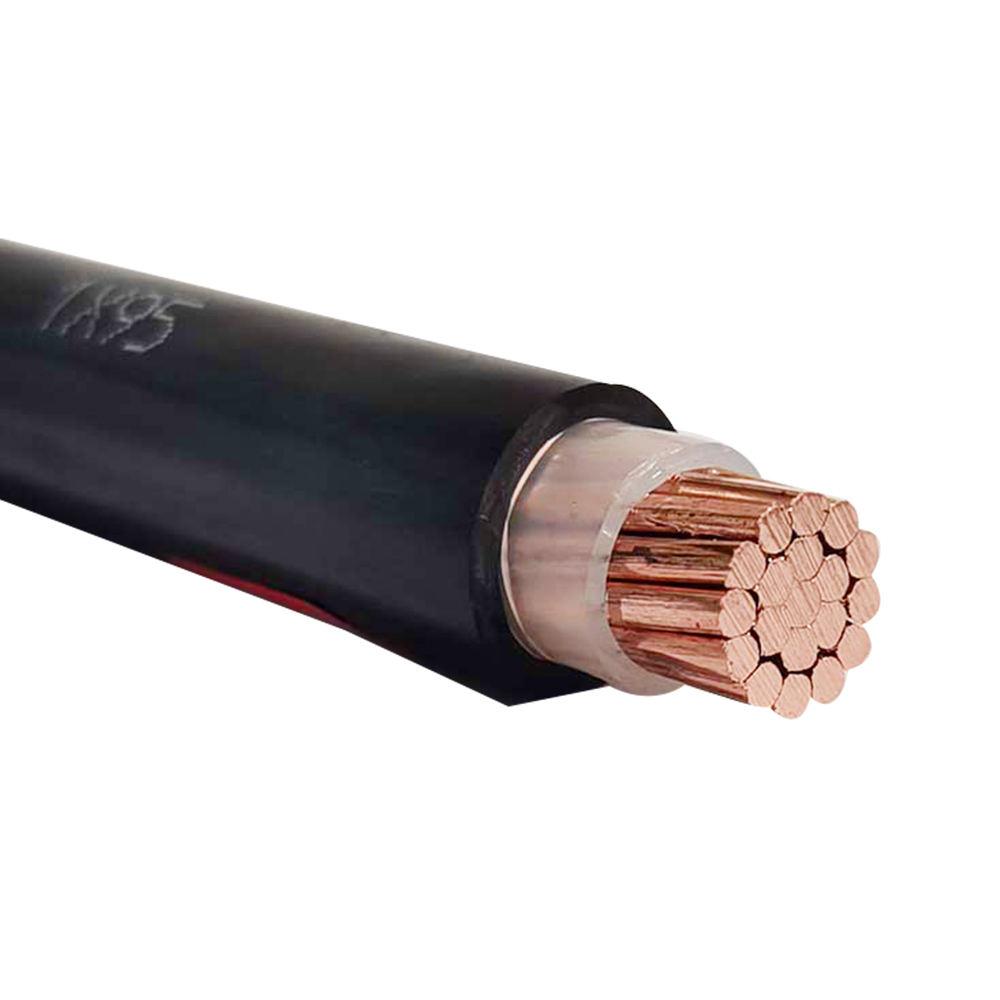

Unarmoured power cable showing a stranded copper conductor under insulation and black sheath

Unarmoured Power Cable

The same conductor and insulation without the armour layer, making the cable lighter, more flexible and easier to pull. Built for protected routes such as cable trays, conduits, risers and indoor panel work.

  • Conductor Copper or aluminium, stranded
  • Insulation XLPE or PVC
  • Armour None
  • Cores 1, 2, 3, 3.5 and 4 core
  • Sheath PVC, ST-1 / ST-2 grade

Where they are used

Underground distribution

Direct buried feeder runs between substations and load points.

Industrial plant

Motor, panel and switchgear connections inside factories.

Commercial buildings

Risers, trays and conduit routes across floors and basements.

Solar and infrastructure

Inverter-to-transformer runs, ports, airports and site power.

Full specifications in the catalogue

Construction details, current ratings, drum lengths and packing data for both ranges.

Download the catalogue
